YENUO Heavy Duty Drawer Slides Full Extension 12 to 40 Inch Capacity 180 LB |

Product Overview

The YENUO Heavy Duty Drawer Slides Full Extension 12 to 40 Inch Capacity 180 LB | Side Mount Ball Bearing Cabinet Drawer Rails Glides Detachable Runners for Tool Box & File Cabinet Sizes 12–40 Inch 1 Pair approaches gift giving from a quality-first angle, with heavy-duty build and long-term value. measuring 36"L x 2.08"W x 0.75"Th, available in White. Notable features include installation note and note fits, contributing to its quality character.

Key Features

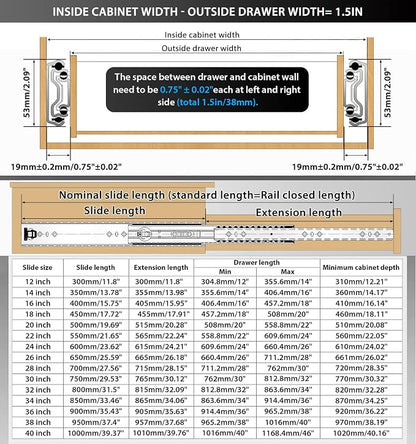

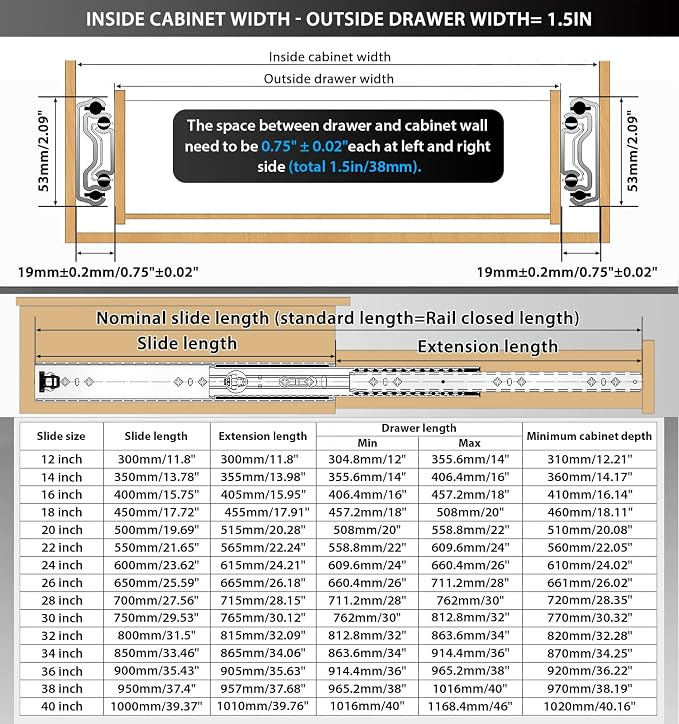

• Installation Note: Fits drawers with internal depth ≥ 37"-39"; requires 0.75in gap on each left/right side between drawer and cabinet wall, totaling 1.5in (internal cabinet width - external drawer width = 1.5in). ⚠️Installation Note: Ensure the two slide rails are parallel during installation, and keep the drawer-side slide and cabinet-side slide horizontally aligned and parallel. Hardware Note: Mounting screws not included; please purchase M5 screws of appropriate specifications based on your specific installation scenario.

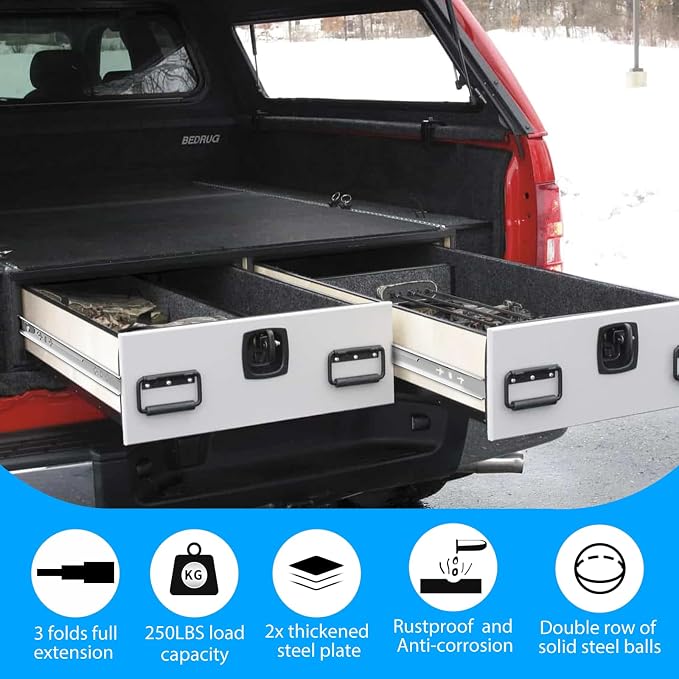

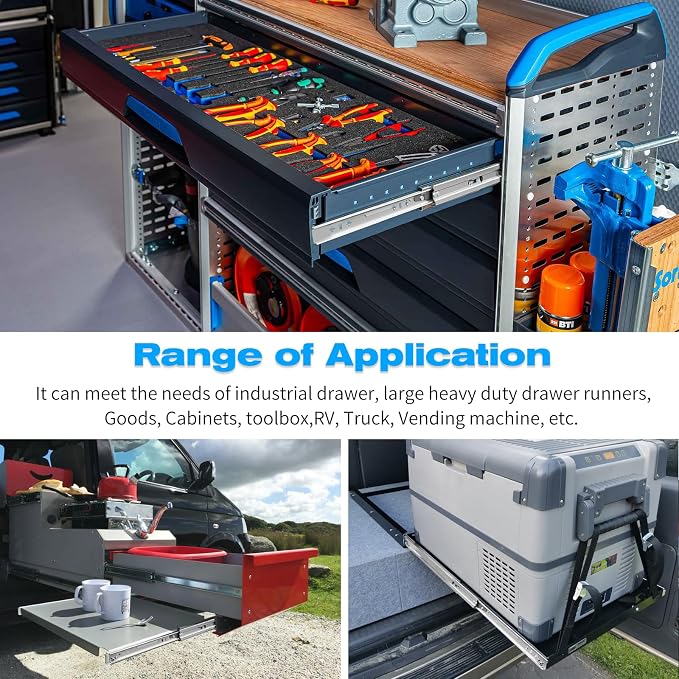

• 3-Fold Full Extension Drawer Slides： Specs: Width 2.08" (53mm) 一Length 36" (900mm)一Fully Extended Length 72" (1800mm) 一Installation Clearance 0.75" (per side).✨ Core Feature: 3-fold full extension design enables full slide extension, allowing the drawer to be fully pulled out for easy access to all storage. Applications: Shelves, industrial drawers, mechanical cabinets, RVs, trucks, vending machines, safety drawers, exhibition drawers, heavy-duty truck drawers, etc.
• Maximum Load Capacity: 180 Lbs | Heavy Duty Drawer Slides Constructed from 2mm thick high-density Q235 cold-rolled steel (tensile strength > 400MPa), it remains stable and secure even when bearing 180 lbs of weight. Durability Test：Withstands 150,000 opening/closing cycles under full load without damage.⚠️ Important Note：The shorter the rail length, the higher the load-bearing capacity.

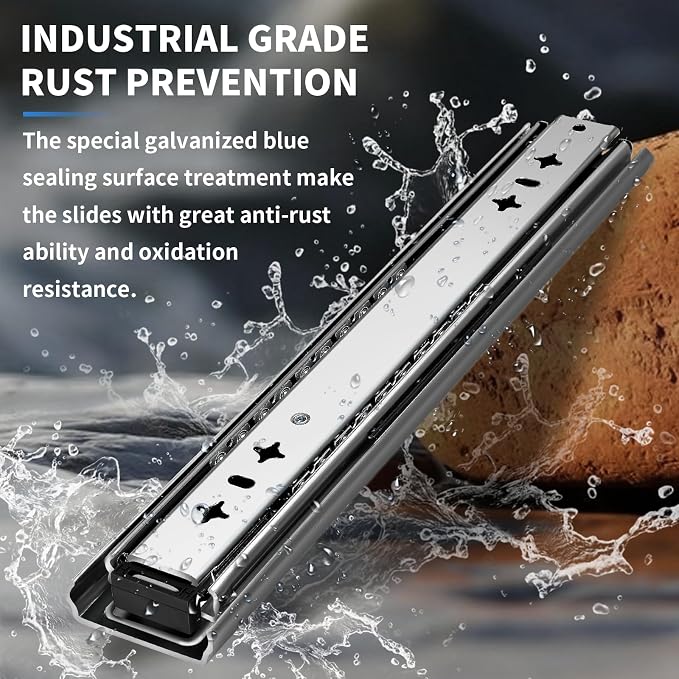

• ⏳30-Year Service Life: The drawer slides feature an electroplated blue zinc surface treatment, providing excellent oxidation resistance and corrosion protection—ensuring a minimum 30-year service life. Our Commitment: Motto "Use quality slides, live quality life"; beyond premium quality, YENUO prioritizes after-sales support, and feel free to contact us for any quality or installation issues.

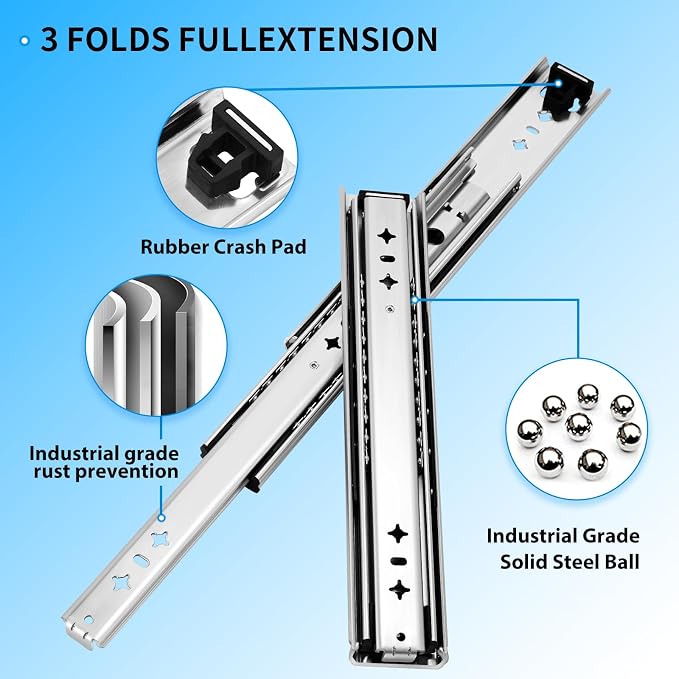

• Detachable & Smooth Operation：There is a plastic buckle on the back of the slide rail, by pressing it,the 3rd track(the narrowest section) can be separated ,which means the drawer can be installed and detached easily by your will.️ Heavy-Duty Smooth Sliding: Dual industrial-grade bearing balls ensure smooth gliding even under heavy loads. Equipped with a wear-resistant, impact-resistant rubber crash pad to eliminate collision noise for quiet operation.

Why Choose the YENUO Heavy Duty Drawer Slides Full Extension 12 to 40 Inch Capacity 180 LB | Side Mount Ball Bearing Cabinet Drawer Rails Glides Detachable Runners for Tool Box & File Cabinet Sizes 12–40 Inch 1 Pair

What distinguishes the YENUO Heavy Duty Drawer Slides Full Extension 12 to 40 Inch Capacity 180 LB | Side Mount Ball Bearing Cabinet Drawer Rails Glides Detachable Runners for Tool Box & File Cabinet Sizes 12–40 Inch 1 Pair is the combination of practical design and installation note. Users benefit from reliable performance, making it a strong pick among drawer slides options.

Best For

Geared toward gift giving, the YENUO Heavy Duty Drawer Slides Full Extension 12 to 40 Inch Capacity 180 LB | Side Mount Ball Bearing Cabinet Drawer Rails Glides Detachable Runners for Tool Box & File Cabinet Sizes 12–40 Inch 1 Pair brings practical build quality and consistent long-term value.

Quick Summary

The YENUO Heavy Duty Drawer Slides Full Extension 12 to 40 Inch Capacity 180 LB | Side Mount Ball Bearing Cabinet Drawer Rails Glides Detachable Runners for Tool Box & File Cabinet Sizes 12–40 Inch 1 Pair is a Drawer Slides product by YENUO. Color: White. Brand: YENUO. Product Dimensions: 36"L x 2.08"W x 0.75"Th. Finish Type: Steel. Mounting Type: Side Mount. Price: $139.12.

Product Specifications
